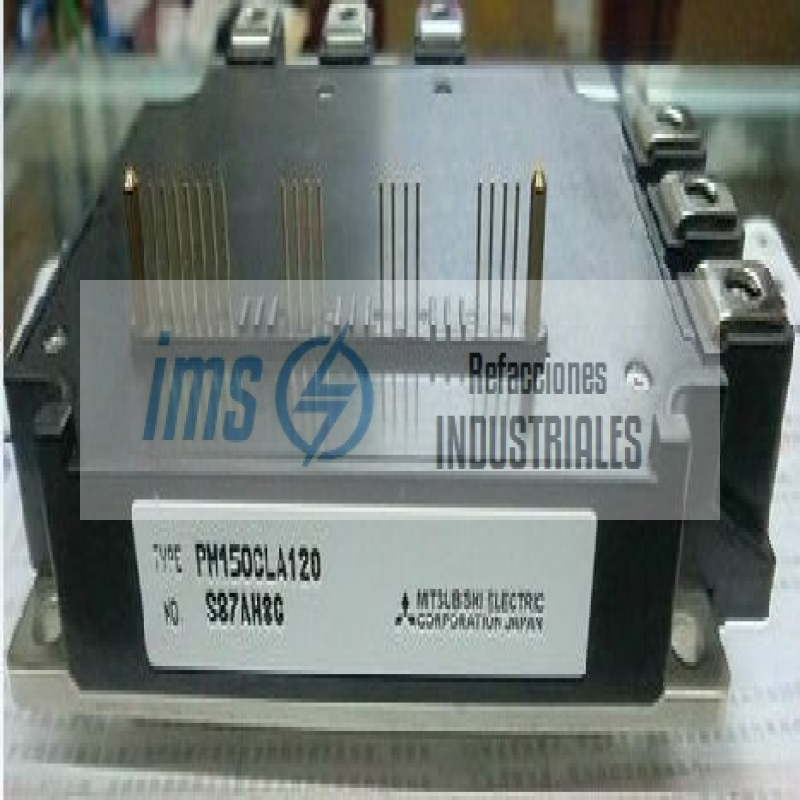

PM150CLA120

0,00 $

steuerfrei

MODULOS THYRISTOR THYRISTOR

Última actualización 2024-03-27

150A/1200V/6U

No identificado

Menge

Nicht auf Lager

Política de seguridad

(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)

Política de entrega

(Envíos de 1-2 días hábiles para productos de stock)

INTELLIGENT POWER MODULE
a) Adopting new 5th generation IGBT (CSTBT) chip, which performance is improeved by 1um fine rule process. For example, typical VCE(sat)=1.9V @ Tj=125 C
b) I adopt the over-temperature conservation by Tj detection of CSTBR chip, and error output is possible from all each conservation upper and lower arm of IPM.
3o/ 150A, 1200V Current-sense IGBT type inverter
Monolithic gate drive & protection logic
Detection, protection & status indication circuits for, short-circuit, over-temperature & under-voltage (P-Fo available from upper arm devices)
Acoustic noise-less 30kW class inverter application
UL Recognized Yellow Card No. E80276(N)
Fle No.E80271
