- Nicht auf Lager
T707123044BY
159,39 $
steuerfrei

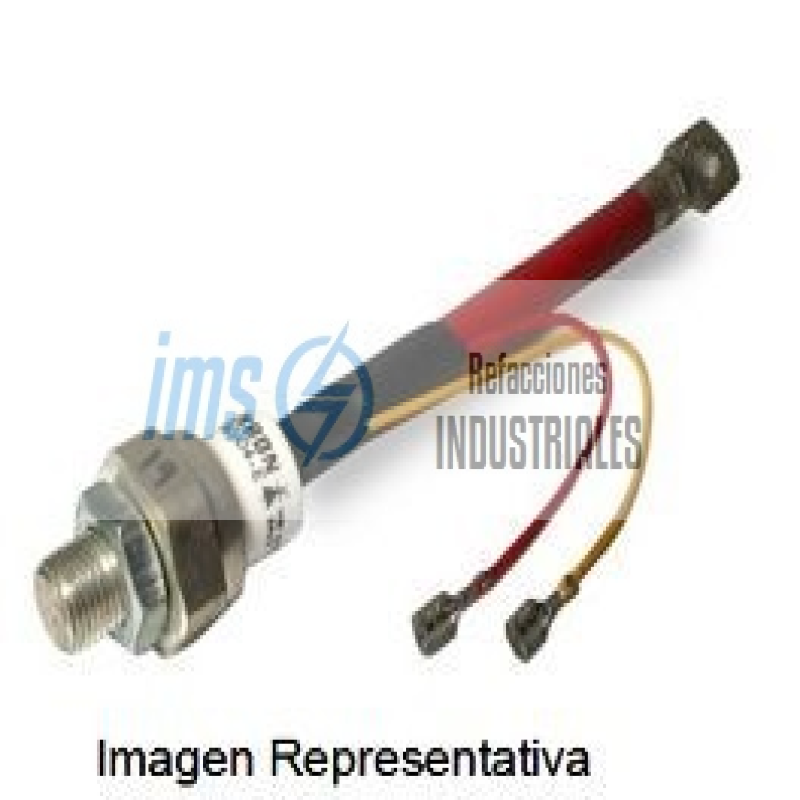

SCR - THYRISTOR CONTROL DE FASE
Última actualización
T707123044BY300A/1200V/1U
No identificado
Delivery time :
Política de seguridad
(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)
Política de entrega
(Envíos de 1-2 días hábiles para productos de stock)
Features
- Fast Switching SCR
- Center fired dinamic gate
- High di/dt with soft gate control
- High frequency operation
- Sinusoidal waverform operation to 30 kHz
- Rectangular waveform operation to 20 KHz
- Low dynamic forward voltage drop
- Low switching losses at high frequency
Aplications
- Applications
- Inverters for UPS
- Induction heating
- AC motor drives
- Cycloconverters
- Chopper
- Crowbar
Powerex Inverter SCRs, T707 Series
Powerex
T707123044BY
SCR, TO-118, 1200V, 475A, TQ=40 ; Package Style; TO-118
Vrrm (volts); 1200 Volts
Vdrm (volts); 1200 Volts
It (rms) Amps; 475 Amps
It (avg) Amps; 300 Amps
Itsm Amps; 8000 Amps
di/dt (A/microseconds); 400
dv/dt (V/microseconds); 300
I2T@60Hz (A2Sec); 265000
Vtm (volts); 1.45 Volts
tq (microseconds); 40 MicroSeconds
Irrm Peak (mA); 30 MilliAmps
Idrm Peak (mA); 30 MilliAmps
Igt (mA); 150 MilliAmps
Vgt (volts); 3 Volts
Stud Size; 3/4-16 UNF-2A
Lead Length FMS (inches); 9.78 Inches
Junction Temp.; 257 Degrees F
RoHS; Yes
T707123044BY
Besondere Bestellnummern
- Hersteller-Teilenummer (MPN)
- T707123044BY
