120FEE

Amperage Rating

120 A

Breaking capacity

200 kA

Fuse indicator

None

Insulated metal gripping lugs (IMGL)

No

Utilization category

aR (accompanied semiconductor protection)

Voltage type

AC/DC

Rated switching capacity

200 kA

Rated voltage AC

690 V

Rated voltage DC

500 V

Center-to-center distance of connections

71 mm

Mounting dimension

M8

Current type

AC/DC

Class

Class aR

Clearing (I2T)

1900 at 415 V, 3100 at 660 V

Watt losses

32 W

Fuse shape

Offset dual barrel bolted tags

Pre arc (I2T)

540

Color

None

Interrupt rating

200 kA RMS Sym, 50 kA at 500 Vdc

Connection

Blade end x blade end

Construction size

Other

Mounting method

Stud

Packaging type

Standard

Voltage rating

690 V (IEC), 700 V (UL)

Type

Fuse

Application

Semiconductor, DC Common bus, DC drives, power converters/rectifiers

Fuse type

FEE

Suitable for

EC-600 Trip indicator kit (indicator + clips)

TI700 Fuse indicator

MAI Microswitch/adaptor

MBI Microswitch/adaptor

Fuse system (according to IEC 60269)

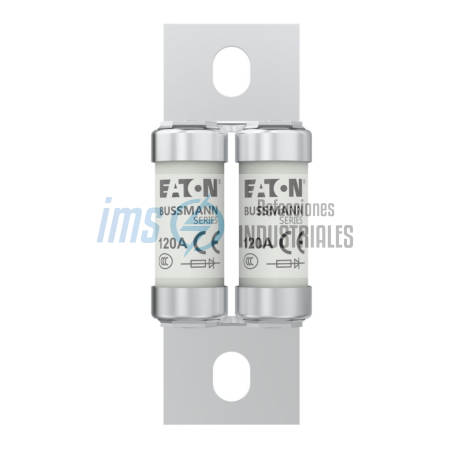

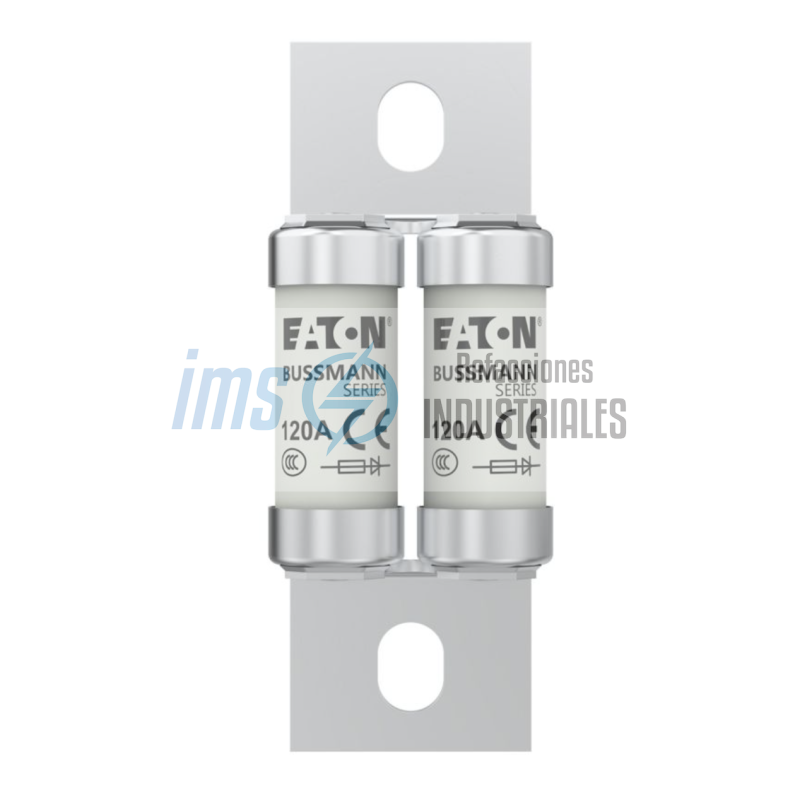

Eaton Bussmann series high speed British standard fuse, Double barrel, 120A, 690 VAC/500 VDC (IEC), 700 VAC/500 VDC (UL), Class aR, Breaking capacity 200 kA RMS Sym., 50 kA DC at 500 VDC
