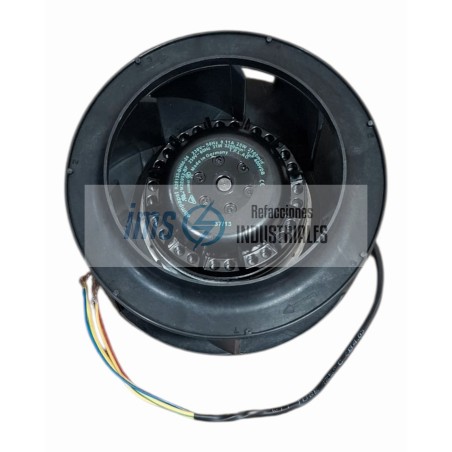

R2E133-BH66-24
149,50 $
Aucune taxe
Ventiladores
Última actualización
R2E133-BH66-24230V/0.11/0.13A/25W
EBM-PAPST
Delivery time : 1-2 semanas.
Política de seguridad
(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)
Política de entrega
(Envíos de 1-2 días hábiles para productos de stock)
Features
- Motor M2E052-BF
- Phase 1~ 1~
- Nominal voltage / VAC 230 230
- Frequency / Hz 50 60
- Method of obtaining
- data
- fa fa
- Valid for approval/
- standard
- CE CE
- Speed (rpm) / min-1 2800 3300
- Power consumption / W 24 27
- Current draw / A 0.11 0.13
- Capacitor / µF 1 1
- Capacitor voltage / VDB 400 400
- Capacitor standard S0 (CE) S0 (CE)
- Min. back pressure / Pa 0 0
- Min. ambient
- temperature / °C
- -25 -25
- Max. ambient
- temperature / °C
- 50 60
- Starting current / A 0.20 0.21
Aplications
- The device is exclusively designed as a built-in device for conveying
- air according to its technical data.
- Any other usage above and beyond this does not conform with the
- intended purpose and constitutes misuse of the device.
- Customer equipment must be capable of withstanding the mechanical
- and thermal stresses that can arise from this product. This applies for the
- entire service life of the equipment in which this product is installed.
R2E133-BH66-24
Références spécifiques
- MPN
- R2E133-BH66-24
