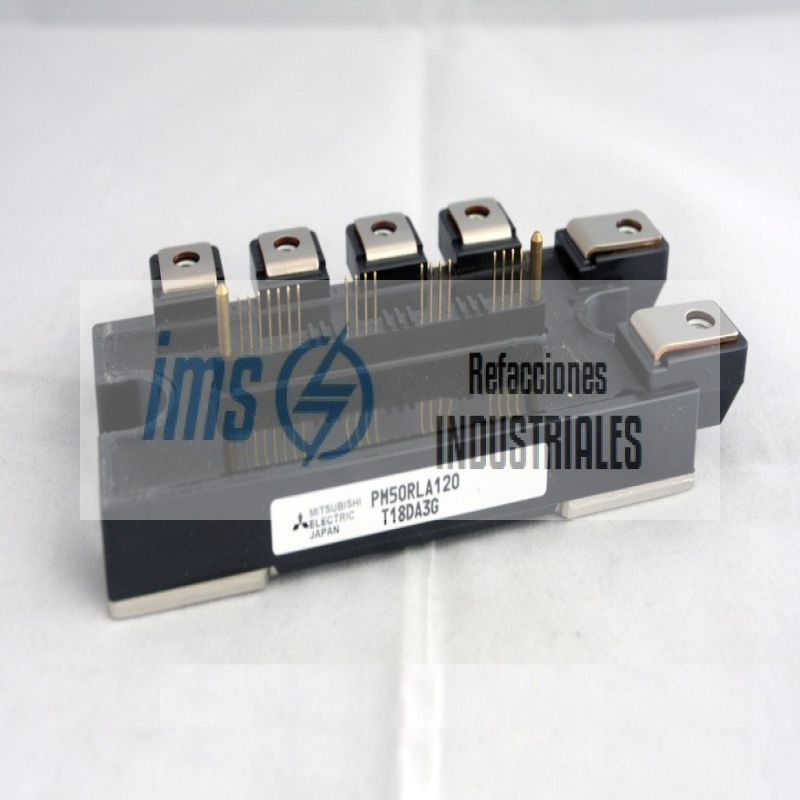

PM50RLA120
170,63 $
Nessuna tassa
PM50RLA120
Política de seguridad
(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)
Política de entrega
(Envíos de 1-2 días hábiles para productos de stock)
Features
- INTELLIGENT POWER MODULE
- a) Adopting new generation IGBT (CSTBT) chip, wich performance is improved by 1 um fine rule process. For exampl, typical VCE(sat) = 1.9 V @ Tj = 125 C
- b) I adopt the over-temperature conservation by Tj detection of CSTBT chipn and error outputs is possible from all each conservation upper and lower arm of IPM
- c) Nwe small package
- Reduce the package size by 10 % thinkness by 22 % from S-DASH series
- d) Current rating of brake part increased
- 50 % for the current rating of inverter part
- 3 phase 50 A, 1200 V Current-sense IGBT type inverter
- 25 A, 1200 V Current-sense regenerative brake IGBT
- Monolithic gate drive & protection logic
- Detectio, protection & status indication circuits for, short-circuit, over-temperature & under-voltage (P-Fo available from upper arm devices)
- Acoustic noise-less 5.5 kW/7.5kW class inverter application
- UL Recognized Yellow Card No. E80276(N)
- File No. E80271
Aplications
- Applications
- General purpose inverter
- servo drives
- motor controls
PM50RLA120
Riferimenti Specifici
- MPN
- PM50RLA120
