CD631215C
92,40 $
Nessuna tassa
MODULOS THYRISTOR THYRISTOR
Última actualización
CD631215C150A/1200V/2U
No identificado
Delivery time :
Política de seguridad
(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)
Política de entrega
(Envíos de 1-2 días hábiles para productos de stock)
Features
- Dual SCR Isolated Module
- Electrically Isolated Heatsinking
- DBC Alumina (AI0O3) Insulator
- Glass Passivated Chips
- Metal Baseplate
- Low Thermal Impedance for Improved
- Current Capability
- Quick Connect Gate Terminal with
- Provision for Keyed Mating Plug
- UL Recognized (E78240)
Aplications
- Applications
- Bridge Circuits
- AC & DC Motor Drives
- Battery Supplies
- Power Supplies
- Large IGBT Circuit Front Ends
- Lighting Control
- Heat & Temperature Control
- Welders
Powerex Standard Diode Power Modules, CD63 Series
Powerex

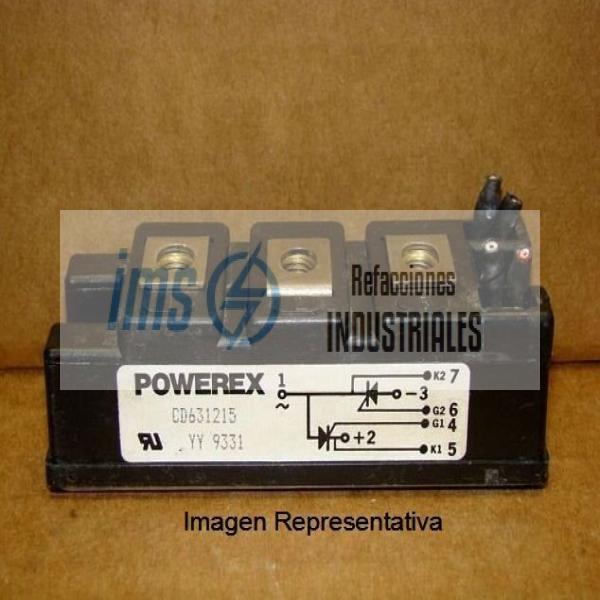

CD631215C
PMOD,Dual-SCR,1200V,150A ; It (avg); 150 Amps
It (RMS); 235 Amps
Vrrm; 1200 Volts
Circuit; Dual SCR Module
Height (mm) Nominal; 29.2 MilliMeters
Width (mm) Nominal; 34 MilliMeters
Depth (mm) Nominal; 94 MilliMeters
Igt; 150 MilliAmps
di/dt (Amps/MicroSec.); 100
dV/dt (Volts/MicroSec.); 800
Mounting Centers; 80 MilliMeters
Approvals; UL
RoHS; Yes ;
CD631215C
Riferimenti Specifici
- MPN
- CD631215C
