ND431225NA
190,58 $
Nessuna tassa
MODULOS THYRISTOR THYRISTOR
Última actualización
ND431225NA250A/1200V/2U
No identificado
Delivery time :
Política de seguridad
(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)
Política de entrega
(Envíos de 1-2 días hábiles para productos de stock)
Features
- Dual SCR Isolated MODULE
- Electrically Isolated Heatsinking
- Aluminum Nitride Isolator
- Compression Bonded Elements
- Metal Baseplate
- Low Thermal Impedance for improved
- Current Capability
- Quick Connect Gate Terminal with Provision
- for Keyed Mating Plug
- UL Recognized
Aplications
- Applications
- Bridge Circuits
- AC & DC Motor Drives
- Battery Supplies
- Power Supplies
- Large IGBT Circuit Front Ends
Powerex Standard SCR Power Modules, ND Series
Powerex

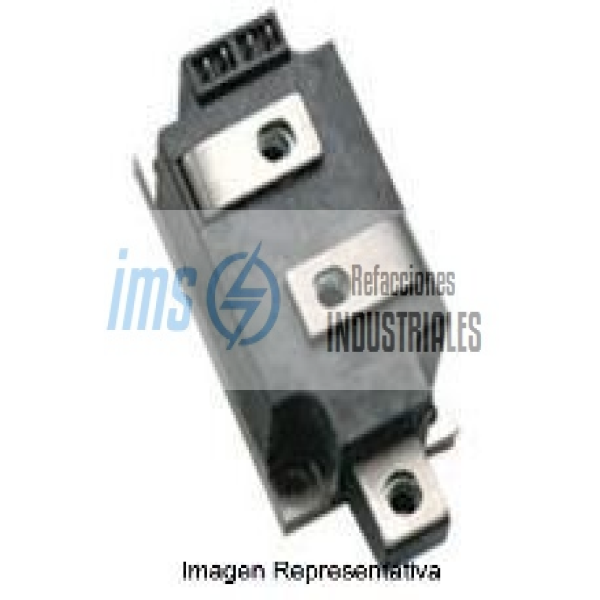

ND431225NA
Power Module 250A 1200V Dual-SCR Less Terminal Hardware, with 18" Leads ; It (avg); 250 Amps
It (RMS); 393 Amps
Vrrm; 1200 Volts
Circuit; SCR Doubler w/aux Cathode
Height (mm) Nominal; 52 MilliMeters
Width (mm) Nominal; 51 MilliMeters
Depth (mm) Nominal; 115 MilliMeters
Igt; 150 MilliAmps
di/dt (Amps/MicroSec.); 800
dV/dt (Volts/MicroSec.); 500
Aux. Cathode(s); Yes
Mounting Centers; 80/38.1 MilliMeters
Approvals; ULR
Comments; Includes wire leads. ;
ND431225NA
Riferimenti Specifici
- MPN
- ND431225NA
