- On request
HD4850G
78,75 $
Nessuna tassa
RELEVADOR DE ESTADO SOLIDO
Última actualización
HD4850G50A/530V/1U
No Identificado
Delivery time :
Política de seguridad
(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)
Política de entrega
(Envíos de 1-2 días hábiles para productos de stock)
Features
RELAY PANEL MOUNT
Rating from 25A to 125A @ 48-660 VAC
SCR output for heavy industrial loads
Zero turn-on or instantaneous turn-on outputs
UL/CSA/VDE Approved, CE Compliant to EN60950-1
Improved SEMS screw and washer
Redisigned housing with anti-rotation barriers
Aplications
Applications
AC or DC control
Direct bond copper substrate
EMC compliant to Level 3
Direct power lesd frame
Epoxy free design

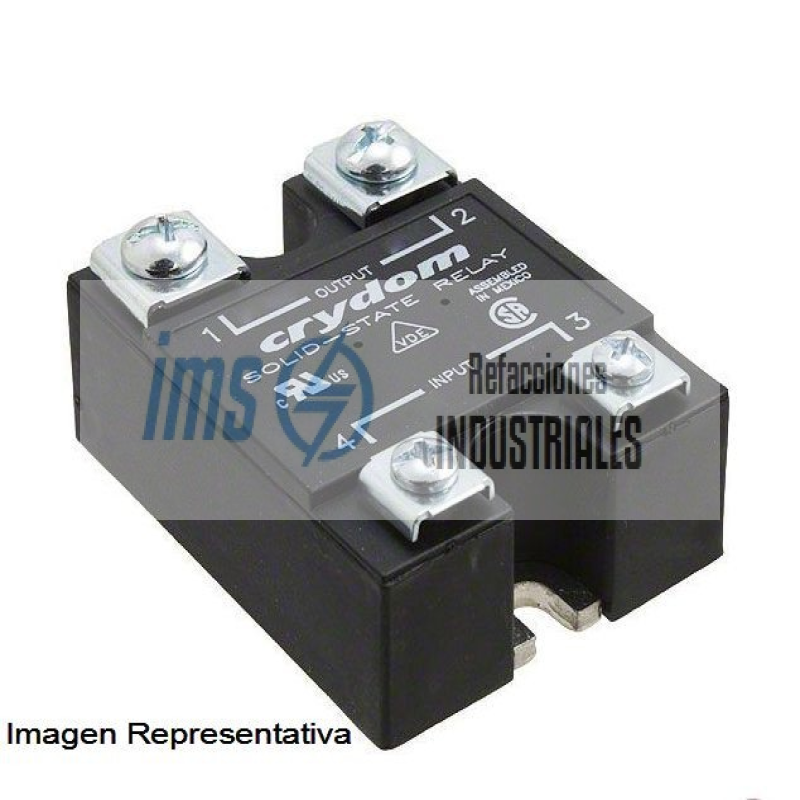

Crydom Solid State Relays, H Series
Crydom
HD4850G
SOLID STATE RELAY ; No. of Circuits; 1
Switching Type; Zero Voltage
Amps; 50
Circuit; 1-NO
Input Polarity; DC
Input Signal; 4~32 VDC
Output Voltage; 48~530 VAC
Mounting; Panel
Output Type; SCR AC Switch
Termination; Screw Terminals
Status Ind.; Yes
Transient Overvoltage; 1200 Volts ;
HD4850G
Riferimenti Specifici
- MPN
- HD4850G
