TBK706300HHE
search
  • TBK706300HHE

TBK706300HHE

328,13 $
Nessuna tassa

VARIOS

Última actualización

DatasheetTBK706300HHE

300A/600V/1U

No identificado

Delivery time :

Quantità
Non disponibile

  Política de seguridad

(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)

  Política de entrega

(Envíos de 1-2 días hábiles para productos de stock)

Features

  • Phase Control Tyristor
  • Low On-State Voltage
  • High di/dt Capability
  • High dv/dt Capability
  • Hermetic Packaging
  • Excellent Surge and I2t Rating
  • Also available in thin Package (26mm) as TBS7 for Higher Current Capability

Aplications

  • Applications
  • Power Supplies
  • Motor Control
  • Battery Chargers

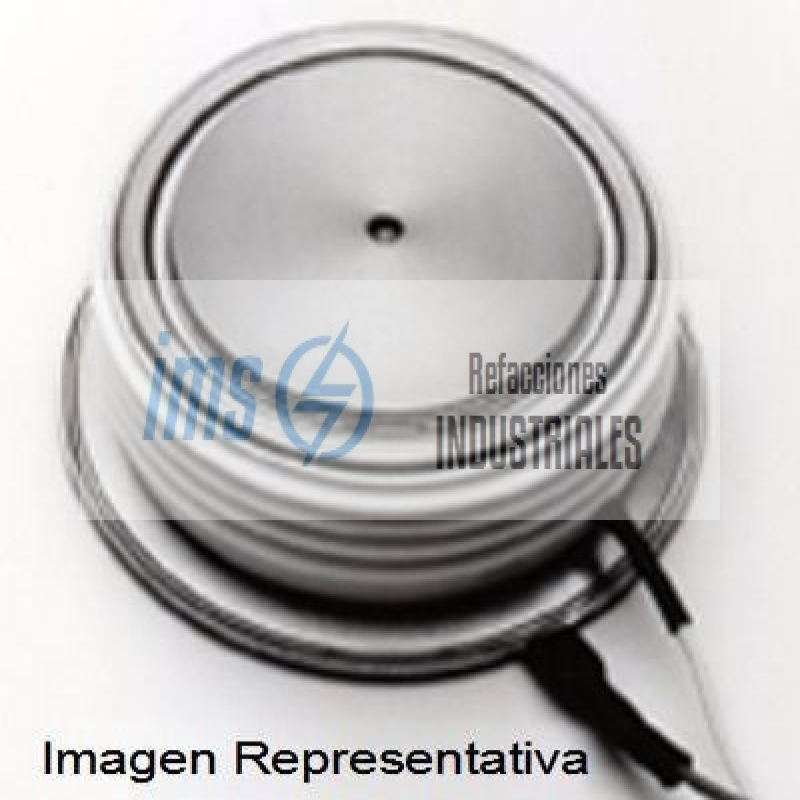

Powerex Phase Control SCRs, TBK Series

Powerex

TBK706300HHE

SCR,TO-200AF,600V,3000A Special Leads ; Package Style; TO-200AF

Vrrm (volts); 600 Volts

Vdrm (volts); 600 Volts

It (rms) Amps; 4710 Amps

It (avg) Amps; 3000 Amps

Itsm Amps; 48000 Amps

di/dt (A/microseconds); 100

dv/dt (V/microseconds); 300

I2T@60Hz (A2Sec); 9600000

Vtm (volts); 1.05 Volts

tq (microseconds); 400 MicroSeconds

Irrm Peak (mA); 150 MilliAmps

Idrm Peak (mA); 150 MilliAmps

Igt (mA); 250 MilliAmps

Vgt (volts); 4 Volts

Puck Size (h x dia.) in.; 1.5x4.36

Junction Temp.; -40~257 Degrees F

Mounting Force; 40 Kn

TBK706300HHE

Riferimenti Specifici

MPN
TBK706300HHE
