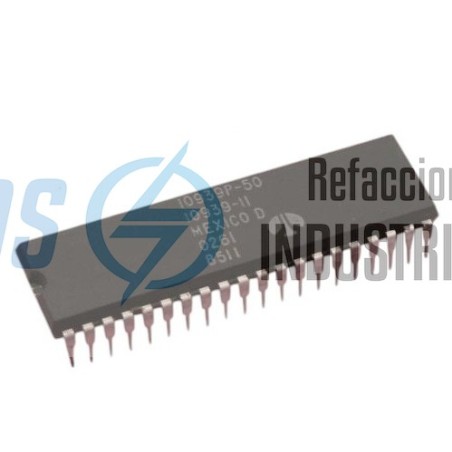

10938P-50
search
  • 10938P-50

10938P-50

$39.38
Sin impuestos

Circuitos integrados -IC

Última actualización

Datasheet10938P-50

V. F. Dot Matrix Display Controller

ROCKWELL

Delivery time :

Cantidad
Agotado

  Política de seguridad

(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)

  Política de entrega

(Envíos de 1-2 días hábiles para productos de stock)

Features

  • Cascadable 20-character display driver expandable to 80 characters.
  • Utilizes a standard 5x7 character font.
  • Provides a separate output for cursor driver control.
  • Enables direct drive functionality for vacuum-fluorescent displays.
  • Incorporates a 128x35 PLA for segment decoding, allowing for the full 96-character ASCII set and 32 special characters.
  • Offers the choice of serial or parallel data input for both 8-bit display and control characters.
  • Available in a 40-pin DIP or 44-pin PLCC package.

Aplications

  • The MIC10938 and MIC10939 Dot Matrix Display Controller is a two-chip MOS/LSI general purpose display controller system designed to interface to dot matrix displays (vacuum fluorescent or LED).
  • The two-chip set will drive displays with up to 35 anodes (dots) and up to 20 grids (characters) plus a cursor. The chips can be cascaded to drive larger displays of as many as 80 characters.
  • An internal PLA-type decoder provides character decoding and dot pattern generation for the full 96-character ASCII set and an additional 32 special characters.
10938P-50

Referencias Específicas

Nº Pieza fabricante (NPM)
10938P-50
