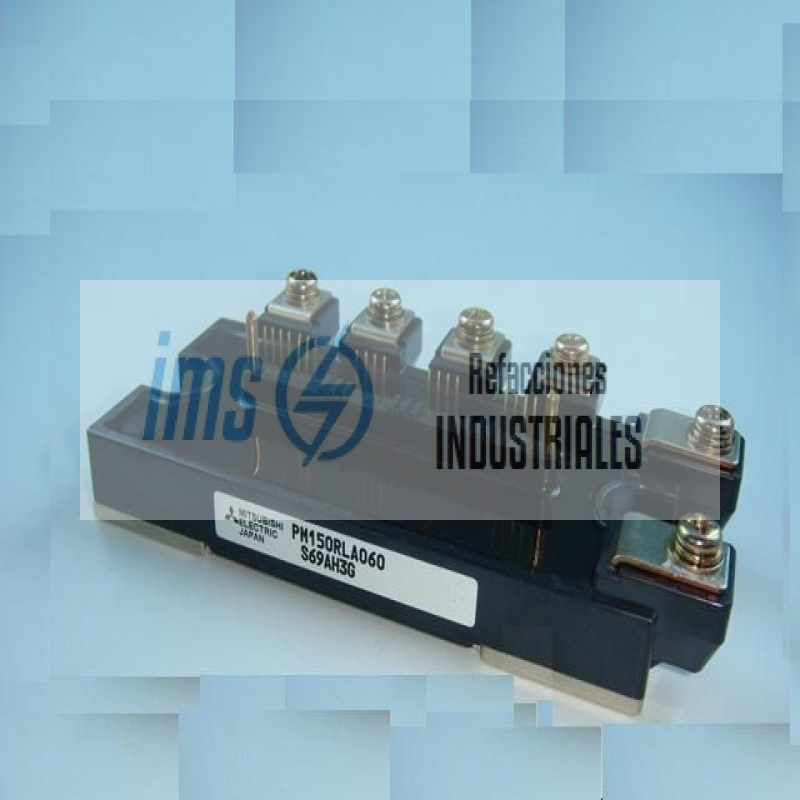

PM150RLA060

INTELLIGENT POWER MODULE

a) Adopting new 5th generation IGBT (CSTBT) chip, which performance is improved

by 1um line rule process.

For example, typical VCE(sat)= 1.5 V @ Tj=125 C

I adopted the over-temperature conservation by Tj detection of CSTBT chip, and error output is possible from all each conservation upper and lower arm of IPM

c) New samall package

Reduce the package size by 10 %, thickness by 22 % from S-DASH series

d) Current rating of brake part increased

50 % for the current rating of inverter part

3 phase 150A, 600V Current-sense IGBT type inverter

75A, 600V Current-sense regenerative brake IGBT

Monolithic gare drive & protection logic

Detection, protection & status indication circuits for, short-circuit, over-temperature & under-voltage (P-Fo available from upper arm devices)

Acoustic noise-less 15kW/18.5kW class inverter application

UL Recognized Yellow Card No. E80276(N)

File No. E80271

Applications

General purpose inverter

servo drives

motor controls
