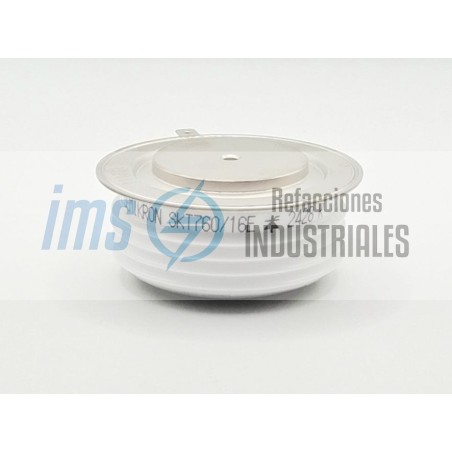

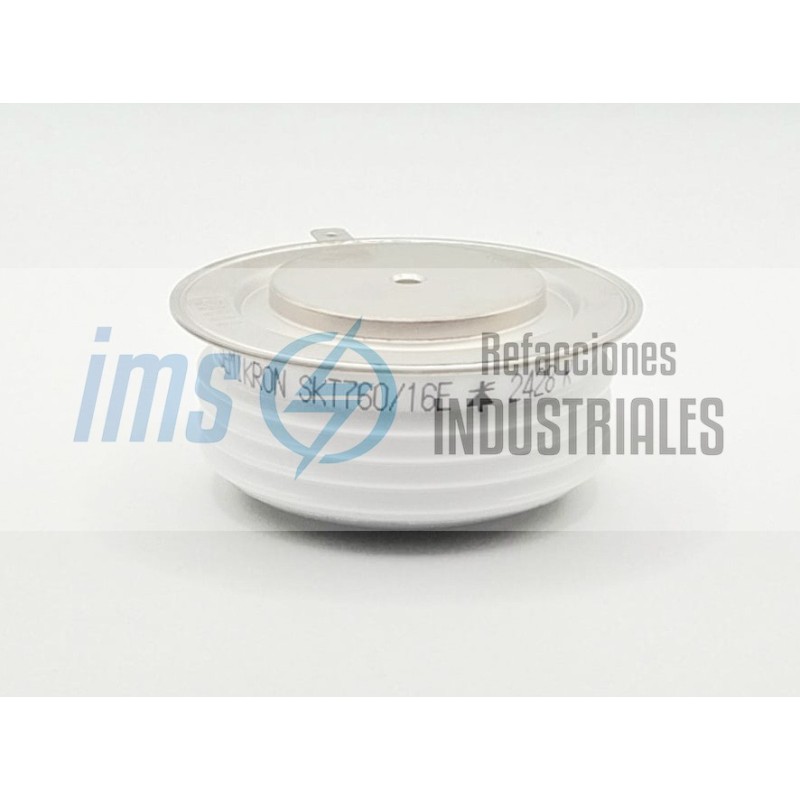

SKT760/16E

$ 138,60
Sem imposto

MODULOS IGBT

Última actualización

DatasheetSKT760/16E

760A/1600V/1U

No identificado

Quantidade
Esgotado

  Política de seguridad

(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)

  Política de entrega

(Envíos de 1-2 días hábiles para productos de stock)

Features

  • THYRISTOR
  • Hermetic metal cases with ceramic insulators
  • Capsule package for double sided cooling
  • Shallow design with single sided cooling
  • International stu00c3u00a1ndar cases
  • Off-state and reverse voltages up to 1800 V
  • Amplifying gate

Aplications

  • Applications
  • DC motor control (e. g. for
  • machine tools)
  • Controlled rectifiers (e. g.
  • For battery charging)
  • AC controllers (e. g. for
  • temperature control)
  • Recommended snubber network e. g. for VRMS < 400 V : R = 33 Ohms/32W, C = 1 uF

Semikron Phase Control SCRs, SKT760 Series

Semikron

SKT760/16E

SCR, TO-200AC, 1600V, 760A ; Package Style; TO-200AC

Vrrm (volts); 1600 Volts

Vdrm (volts); 1600 Volts

It (rms) Amps; 1600 Amps

It (avg) Amps; 696 Amps

Itsm Amps; 15000 Amps

di/dt (A/microseconds); 125

dv/dt (V/microseconds); 1000

I2T@50Hz (A2Sec); 1125000

Vtm (volts); 1.65 Volts

tq (microseconds); 200 MicroSeconds

Irrm Peak (mA); 80 MilliAmps

Idrm Peak (mA); 80 MilliAmps

Igt (mA); 200 MilliAmps

Vgt (volts); 3 Volts

Puck Size (h x dia.) in.; 1x2.25

Junction Temp.; 257 Degrees F

Mounting Force; 10 kN

RoHS; Yes

Diag. No.; SEKG_SCR_DIAG_B10

SKT760/16E

Referências específicas

MPN
SKT760/16E
