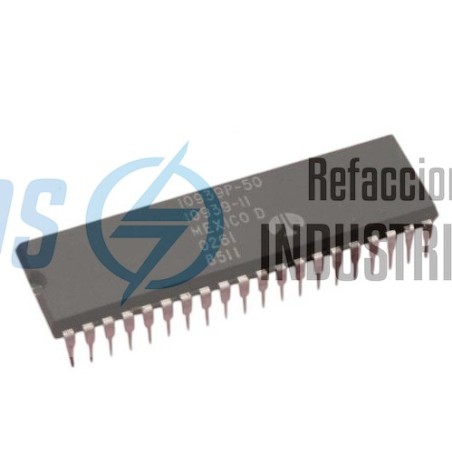

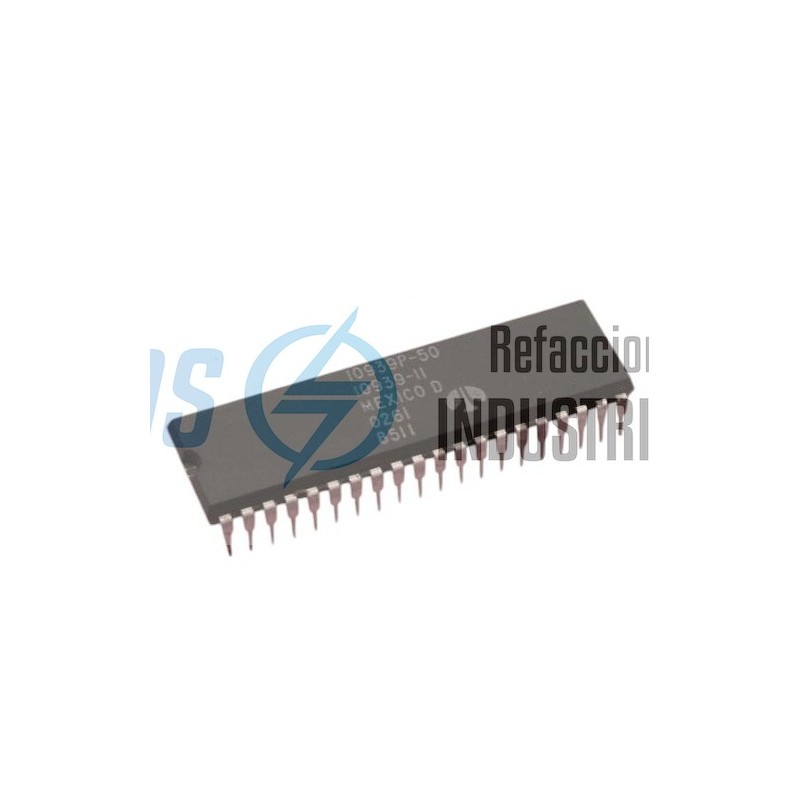

10939P-50
search
  • 10939P-50

10939P-50

15,75 $
Sin impuestos

Circuitos integrados -IC

Última actualización

Datasheet10939P-50

IC DISPLAY DRIVER

ROCKWELL

Delivery time :

Cantidad
Fuera de stock

  Security policy

(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)

  Delivery policy

(Envíos de 1-2 días hábiles para productos de stock)

Features

  • 20-character display driver cascadable to 80 characters
  • Standard 5 × 7 character font
  • Separate cursor driver output
  • Direct drive capability for vacuum-fluorescent displays 128 × 35 PLA provides segment decoding for full 96-character ASCII set, plus 32 special characters
  • Serial or parallel data input for 8-bit display and control characters
  • 40-pin DIP or 44-pin PLCC

Aplications

  • The MIC10938 and MIC10939 Dot Matrix Display Controller is a two-chip MOS/LSI general purpose display controller system designed to interface to dot matrix displays (vacuum fluorescent or LED).
  • The two-chip set will drive displays with up to 35 anodes (dots) and up to 20 grids (characters) plus a cursor. The chips can be cascaded to drive larger displays of as many as 80 characters.
  • An internal PLA-type decoder provides character decoding and dot pattern generation for the full 96-character ASCII set and an additional 32 special characters.
10939P-50

Referencias específicas

MPN
10939P-50
