- Fuera de stock

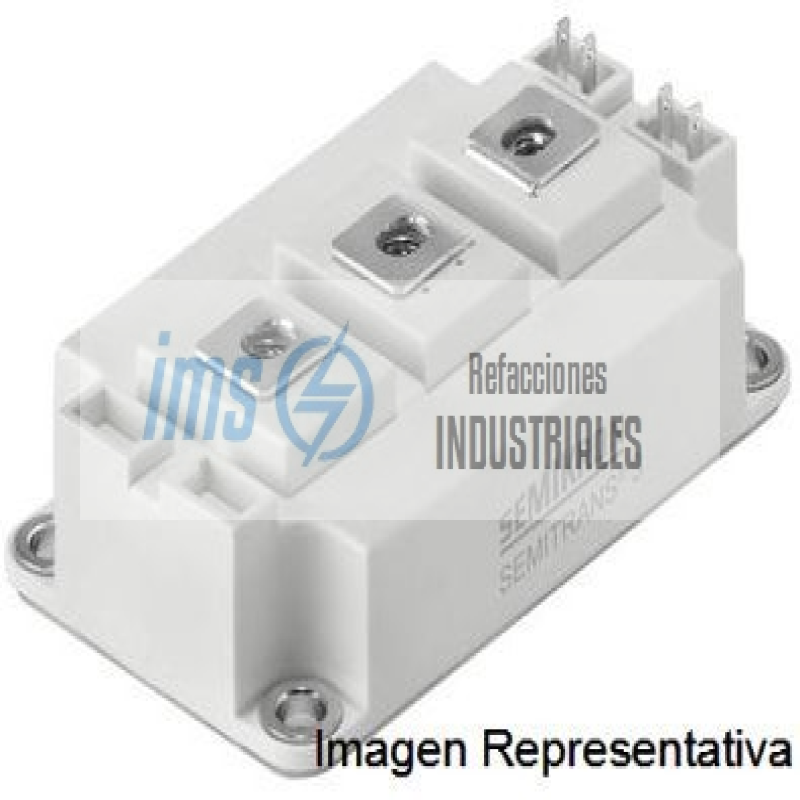

SKM300GAL063D
129,94 $
Sin impuestos
SKM300GAL063D
Security policy
(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)
Delivery policy
(Envíos de 1-2 días hábiles para productos de stock)
Features
- Superfast IGBT MODULE
- NPT - Non punch-through IGBT
- Low tail current with low temperature
- dependence
- High short circuit capability, self limiting if term. G is clamped to E
- Pos. Temp.-coeff. Of VCE(sat)
- 50 % less turn off losses
- 30 % less short circuit current
- Very low Cies, C oes, Cres
- Latch-up free
- Fast & soft inverse CAL diodes
- Isolated copper baseplate using DCB Direct Copper Bonding Technology without hard mould
- Large clearance (13mm) and creepage distances (20mm)
Aplications
- Applications
- Switching (not for linear use)
- Switched mode power supplies
- AC inverter servo drives
- UPS uninterruptible power
- supplies
- Welding inverters
Semikron IGBTs
Semikron
SKM300GAL063D
IGBT 300A 600V LOW CHOPPER ; Type; Single
Vces; 600 Volts DC
Ic; 300 Amps
Vges +/-; 20
Ices Max; 0.6 MilliAmps
Vge(th) Min/Max; 4.5~6.5 Volts
Vce(sat) Max; 2.5 Volts
Height (mm); 30.5
Width (mm); 106.4
Depth (mm); 61.4
RoHS; Yes ;
SKM300GAL063D
Referencias específicas
- MPN
- SKM300GAL063D
