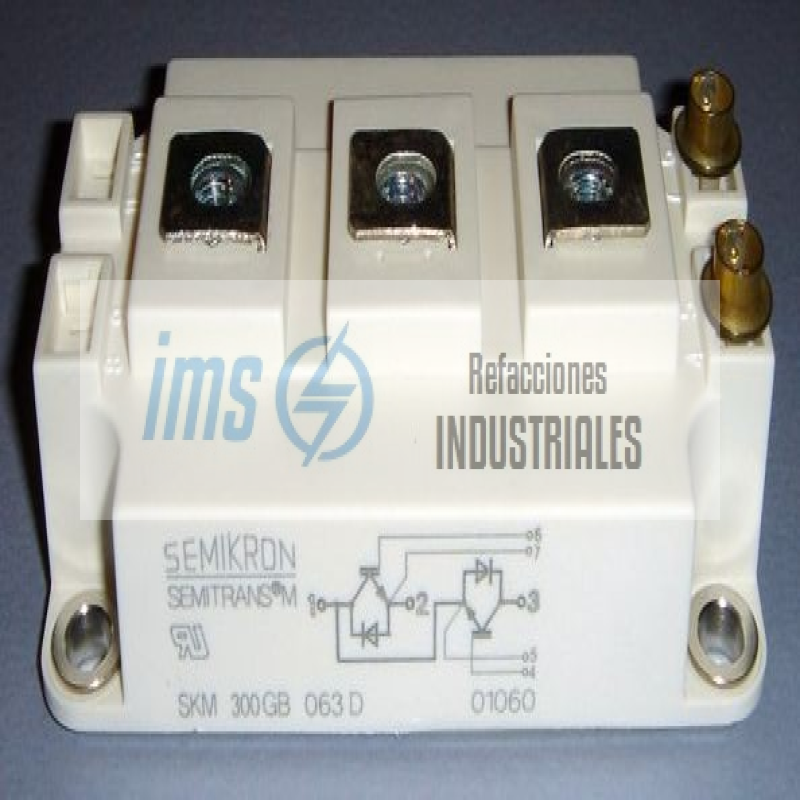

SKM300GB063D
search
  • SKM300GB063D
  • SKM300GB063D

SKM300GB063D

131,25 $
Nessuna tassa

MODULOS IGBT

Última actualización

DatasheetSKM300GB063D

300A/600V/2U

No identificado

Delivery time :

Quantità
Non disponibile

  Política de seguridad

(Los productos cuentan con garantía limitada, por favor revisa nuestras condiciones)

  Política de entrega

(Envíos de 1-2 días hábiles para productos de stock)

Features

  • Superfast IGBT MODULE
  • NPT - Non punch-through IGBT
  • Low tail current with low temperature
  • dependence
  • High short circuit capability, self limiting if term. G is clamped to E
  • Pos. Temp.-coeff. Of VCE(sat)
  • 50 % less turn off losses
  • 30 % less short circuit current
  • Very low Cies, C oes, Cres
  • Latch-up free
  • Fast & soft inverse CAL diodes
  • Isolated copper baseplate using DCB Direct Copper Bonding Technology without hard mould
  • Large clearance (13mm) and creepage distances (20mm)

Aplications

  • Applications
  • Switching (not for linear use)
  • Switched mode power supplies
  • AC inverter servo drives
  • UPS uninterruptible power
  • supplies
  • Welding inverters

Semikron IGBTs

Semikron

SKM300GB063D

IGBT 300A 600V DUAL ; Type; Dual

Vces; 600 Volts DC

Ic; 300 Amps

Vges +/-; 20

Ices Max; 0.6 MilliAmps

Vge(th) Min/Max; 4.5~6.5 Volts

Vce(sat) Max; 2.5 Volts

Height (mm); 30.5

Width (mm); 106.4

Depth (mm); 61.4

RoHS; Yes ;

SKM300GB063D

Riferimenti Specifici

MPN
SKM300GB063D
