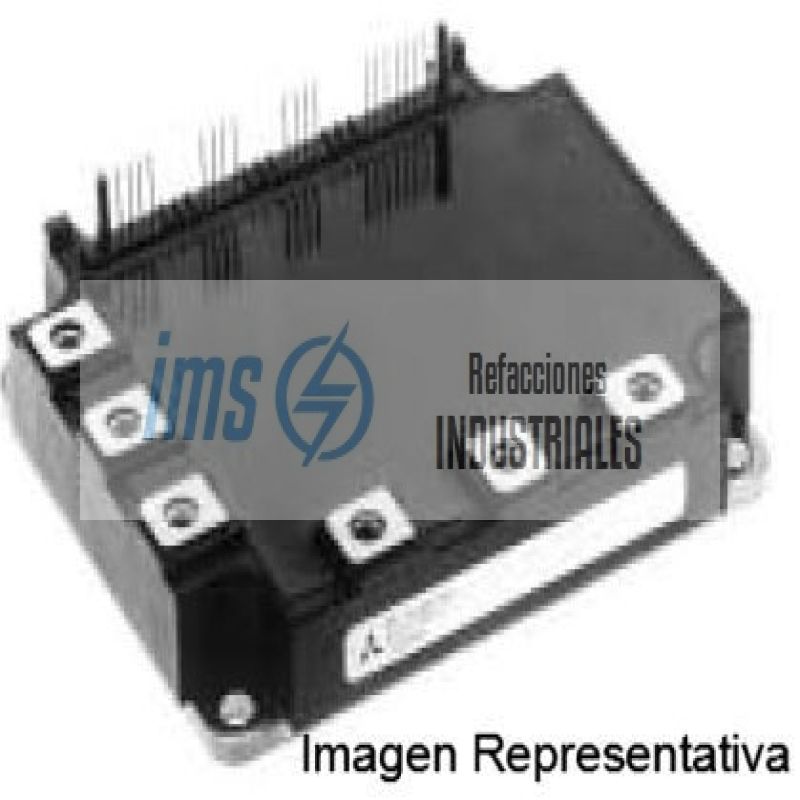

PM75RSD060

INTELLIGENT POWER MODULE

a ) Adopting new 4th generation planar IGBT chip, which performance is improved by 1 um fine rule process

For example, typical VCE(sat) =1.7V

b ) Using new Diode which is designed to get soft reverse recovery characteristics

c ) Keeping the package compatibility

The layout/position of both terminal pin and mounting hole is same as S-series 3rd generation IPM

3 phase 75A, 600V Current-sense IGBT for 15kHz switching

30A, 600V Current-sense regenerative brake IGBT

Monolithic gate drive & protection logic

Detection, protection & status indication circuits for over-current, short-circuit , over-temperature & under-voltage

(P-Fo available from upper leg devices)

Acoustic noise-less 5.5/7.5kW class inverter application

UL Recognized Yellow Card No. E80279(N) File No. E80271

Applications

General purpose inverter

servo drives

motor control
