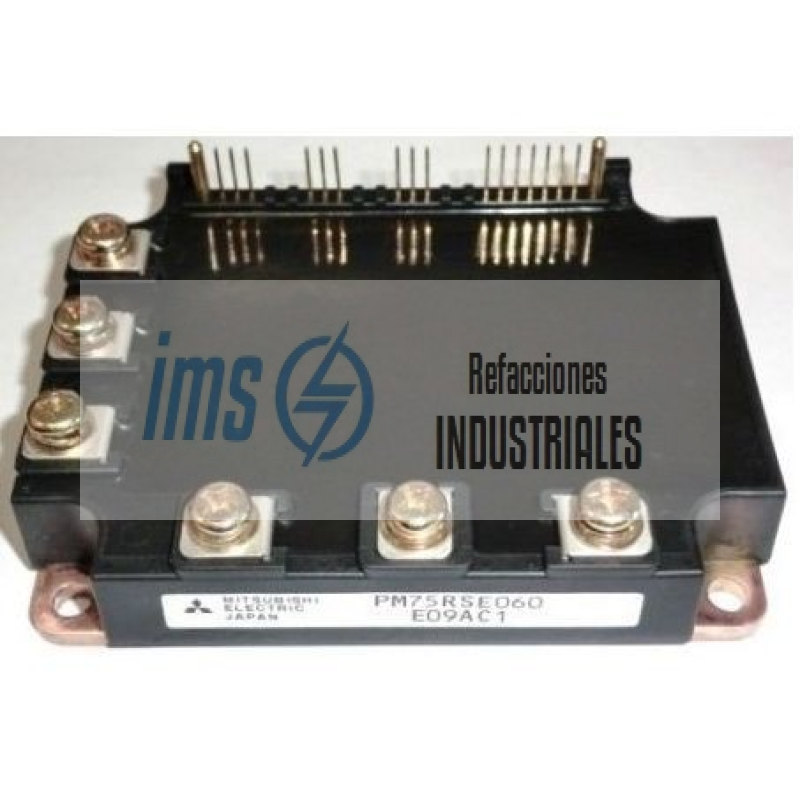

PM75RSE060

INTELLIGENT POWER MODULE

a) Adopting new 4th generation planar IGBT chip, which performance is improved by 1um fine rule process. For example, typical VCE(sat) = 1.7V

b) Using new Diode which is designed to get soft reverse recovery characteristics

30/ 75A, 600V Current-sense IGBT for 15kHz switching

30A, 600V Current-sense regenerative brake IGBT

Monolithic gate drive & protection logic

Detection, protection & status indication circuits for over-current, short-circuit, over-temperature & under-voltage

Acoustic noise-less 5.5/7.5 kW class inverterapplication

UL Recognized Yellow Card No. E80276(n)

File No. E80271

Applications

General purpose inverter

servo drives

motor controls
